Upgrade Your Business with Dell Poweredge Server featuring AMD HBA345 and 64 Cores for Your Business Requirements

MOQ:	1 stukken
Prijs:	Contact us
Standaardverpakking:	Gebaseerd op de behoeften van de klant
Leveringstermijn:	2-7 werkdagen
Betaalmethode:	L/C, D/A, D/P, T/T, Western Union
Toeleveringskapaciteit:	/stukken >= 2 stukken

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

Peking, China

Merknaam

D E L L

Modelnummer

R7525

RAID:

HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA Chipset SATA/SW RAID ((S150): Ja PERC11 ️ H755, H

AMD,Twee 2e of 3e generatie AMD EPYCTM-processors met maximaal 64 kernen per processor

RAM, geheugen.:

DDR4: Tot 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandbreedte tot 3200 MT/S

Slot voor harde schijf:

12*3,5,16/24*2,5,+2*2,5,SAS/SATA/NVME

Voeding:

800W het Platina van het platina1400w Platina 2400W

Netwerk:

Netwerkopties OCP x16 Mezz 3.0

Gewicht, afmetingen:

30 kg tot 40 kg,715.5*434*86.8mm

Pcie:

PCIe Tot 8 x PCIe Gen4 slots

Tot 64 DDR-DIMM's

Besturingssysteem:

Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

Slots Pcie:

Maximaal 3 x PCIe Gen4 slots

Servermodel:

Afmetingen:

1U: 434,00 mm x 42,80 mm x 715,50 mm, 2U: 434,00 mm x 86,80 mm x 715,50 mm, 4U: 434,00 mm x 175,00 m

Softwareinval:

RAID:

PERC H730P, H330, HBA330 (niet-RAID)

Achterste poorten:

VGA, serieel, 2 x USB 3.0, speciale iDRAC-netwerkpoort

Hete verkopende server:

Dell R740XD

Uitbreiding Slots:

Maximaal 8 PCIe 3.0-sleuven

Voorste poorten:

VGA, 2 x USB 2.0, speciale IDRAC Direct Micro-USB

Chassis:

4*3.5/8*2.5/,SAS/SATA

Garantie:

3 jaar

Voor de toepassing van deze richtlijn wordt het gebruik van de in bijlage I vermelde systemen als be

Markeren:

Dell Poweredge Server with AMD HBA345

64-core Dell Poweredge Server

business server with 64 cores

Productbeschrijving

Adaptable AMD HBA345 Dell Poweredge R7525 Tower Rack Server 64 Cores

PowerEdge R7525 Unprecedented Performance

The Dell EMC PowerEdge R7525 Rack Server delivers powerful performance and flexible configurations for demanding workloads. This highly adaptable server features:

100% more processing cores and faster PCIe Gen 4 data transfer speeds
20% improved memory performance for scale-out environments
Maximized storage and memory configurations for HPC, ML/DL/AI, and rendering
24 direct connect Gen4 NVMe drives for all-flash vSAN Ready Node support
Optimized core count and GPU support for maximum user capacity

Technical Specifications

Technology	Detailed Description
AMD® EPYC™ Generation 2 and Generation 3 processors	7 nm processor technology AMD Interchip global memory interconnect (xGMI) up to 64 lanes Up to 64 cores per socket Up to 3.8 GHz Max TDP: 280 W
3200 MT/s DDR4 memory	Up to 32 DIMMs 8x DDR4 Channels per socket, 2 DIMMs per channel (2DPC) Up to 3200 MT/s (configuration-dependent) Supports RDIMM, LRDIMM, and 3DS DIMM
PCIe Gen and slot	Gen 4 at 16 T/s
Flex I/O	LOM board, 2 x 1G with BCM5720 lan controller Rear I/O with 1 G dedicated management network port One USB 3.0, one USB 2.0 and VGA port OCP Mezz 3.0 Serial port option
CPLD 1-wire	Support payload data of front PERC, Riser, backplane and rear I/O to BIOS and IDRAC
Dedicated PERC	Front storage module PERC with front PERC 10.4
Software RAID	Operating system RAID/PERC S 150
iDRAC9 with Lifecycle Controller	Embedded systems management solution featuring hardware/firmware inventory, alerting, dedicated Gb port, and enhanced performance
Wireless Management	Quick Sync 2.0 offers wireless at-the-box system management with improved user experience
Power supply	60 mm / 86 mm dimension PSU form factor Platinum Mixed Mode options: 800 W AC or HVDC, 1400 W AC or HVDC, 2400 W AC or HVDC
Boot Optimized Storage Subsystem S2 (BOSS S2)	Supports up to 80 mm M.2 SATA SSDs Single Gen2 PCIe x 2 host interface Dual SATA Gen3 device interfaces
Liquid cooling solution	Efficient temperature management system Liquid leak detection via iDRAC (Liquid Leak Sensor mechanism) Detects leaks from 0.02 ml to 0.2 ml

Product Comparison

Feature	PowerEdge R7525	PowerEdge R7425
Processor	Two AMD® EPYC™ Generation 2 or Generation 3 processors	Two AMD Naples™ socket SP3 compatible processors
CPU Interconnect	Inter-chip global memory interconnect (xGMI-2)	AMD Socket to Socket Global Memory Interface (xGMI)
Memory	32x DDR4 RDIMM, LRDIMM, 3DS	32x DDR4 RDIMM, LRDIMM
Disk Drives	3.5-inch, 2.5-inch: 12G SAS, 6G SATA, NVMe HDD	3.5-inch, 2.5-inch: 12G SAS, 6G SATA HDD
Storage Controllers	H755, H755N, H745, HBA345, HBA355, H345, H840, 12G SAS HBA, SW RAID: S150	Adapters: H330, H730P, H740P, H840, HBA330, 12G SAS HBA, SW RAID: S140
PCIe SSD	Up to 24x PCIe SSD	Up to 24x PCIe SSD
PCIe Slots	Up to 8 (PCIe 4.0)	Up to 8(Gen3 x16)
rNDC	2 x 1 GB	Select Network Adapter NDC: 4 x 1 GB, 4 x 10 GB, 2 x 10 GB + 2 x 1 GB, or 2 x 25 GB
OCP	Yes for OCP 3.0	NA
USB Ports	Front: 1 x USB 2.0, 1 x iDRAC USB (Micro-AB USB) Rear: 1 x USB 3.0, 1 x USB 2.0 Internal: 1 x USB 3.0	Front: 1 x USB2.0, 1 x iDRAC USB(Micro USB), Optional 1xUSB 3.0 front port Rear: 2 x USB3.0 Internal: 1 xUSB3.0
Rack Height	2U	2U
Power Supplies	Mixed Mode (MM) AC/HVDC (Platinum) 800 W, 1400 W, 2400 W	AC Platinum: 2400 W, 2000 W, 1600 W, 1100 W, 495 W 750 W AC Platinum: Mixed Mode HVDC (for China only), Mixed Mode AC, DC (DC for China only) 1100 W -48 V DC Gold
System Management	LC 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore	LC 3.x, OpenManage, QuickSync 2.0, Digital License Key, iDRAC9, iDRAC Direct (dedicated micro-USB port), Easy Restore, vFlash
GPU	3 x 300 W (DW) or 6 x 75 W (SW)	3 x 300 W (DW) or 6 x 150 W (SW)
Availability	Hot-plug drives, Hot-plug redundant power supplies, BOSS, IDSDM	Hot-plug drives, Hot-plug redundant power supplies, BOSS, IDSDM

System Views

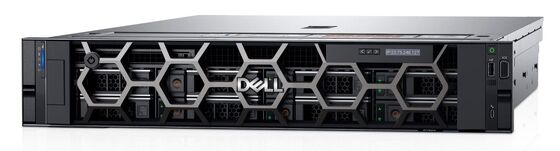

Figure 1. Front view of the 24 x 2.5-inch drive system

Figure 2. Front view of the 16 x 2.5-inch drive system

Figure 3. Front view of the 8 x 2.5-inch drive system

Figure 4. Front view of the 12 x 3.5-inch drive system

Figure 5. Front view of the 8 x 3.5-inch drive system

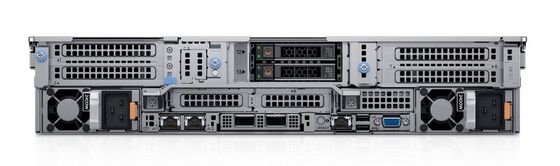

Rear view of the system

Figure 6. Rear view of the system with 2 x 2.5-inch rear drive module

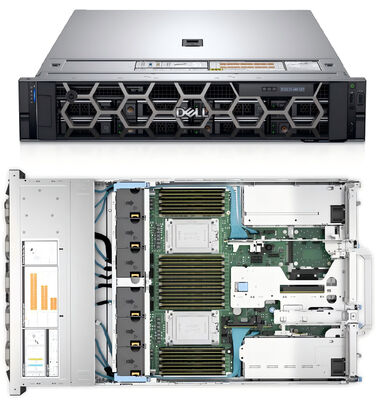

Figure 7. Inside the system

Figure 8. Inside the system with full length risers
